Details

---

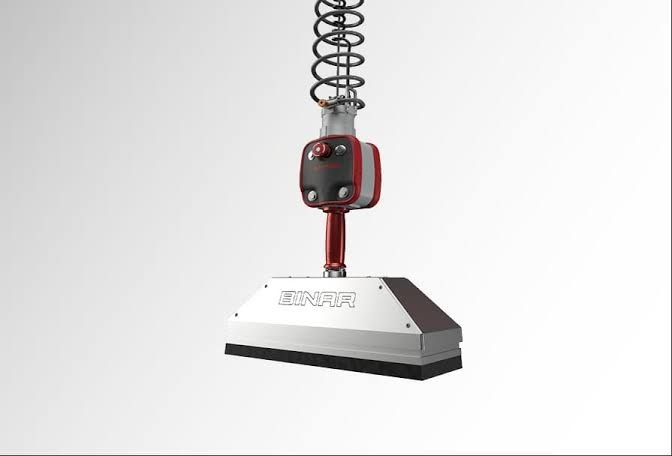

Versatile Vacuum End Effector

Technical Spec Overview

• Working Load Limit (WLL): Max 15 kg
• Weight: 9 kg
• Operating Temperature: Suitable for handling components ranging from -40°C to +65°C
• Air Supply Requirements: Clean, dry and filtered air at a pressure of 6-8 bar
• Suitable for handling objects of various sizes and uneven surfaces with the adaptable foam



Safety & Intelligence Features

• Blow-off Function: Equipped with a built-in blow-off function to ensure quick. clean release of the handled object
• Safety factor: Built to comply with rigorous standards, requiring a 2x safety factor applied to each lifting object.
