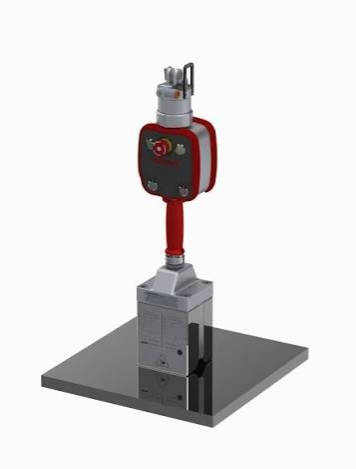

Magnetic End Effector Pneumatic 110 kg

Technical Spec Overview

Lifting capacity: Max 110 kg - Actual lifting capacity varies depending on the specific shape and gripping position of the object
Material Handling Profiles:
- Steel Plates: Suitable for handling sheet metal thicknesses ranging from 3 mm to 25 mm (Max 110kg)
- Round Steel Parts: Suitable for diameters ranging from 25 mm to 120 mm (Max 110 kg).
Air supply requirements: Clean, dry and filtered air at a required pressure of 6.0 - 8.0 bar.
