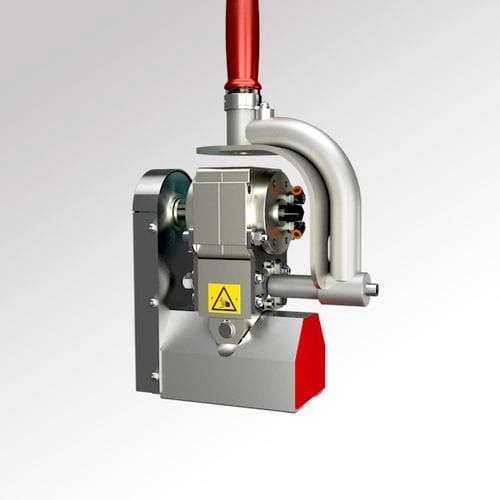

Magnetic End Effector Pneumatic 275 kg

Technical Spec Overview

Equipped with a swivel handle and a 5/2 pneumatic valve
Weight: 21 kg
Operating Temperature: Suitable for handling components up to a maximum temperature of 50°C.
Lifting capacity:
- Steel Plate (by thickness)
  - 20 mm thickness - Max 270 kg
  - 15 mm thickness - Max 210 kg
  - 10 mm thickness - Max 150 kg
- Round Steel Material
  - Diameter Range - 60 mm to 250 mm
  - Maximum Length - 1500 mm
  - Maximum Weight - 135 kg

Safety & Intelligence Features

Smart Triple-Security Check: The integrated control unit automatically runs 3 internal safety tests before every single lift, ensuring secure attachment without slowing down the operator's workflow
Ergonomic Actuation: Easily operated via the lower buttons on the control handle for smooth tilting and positioning.
